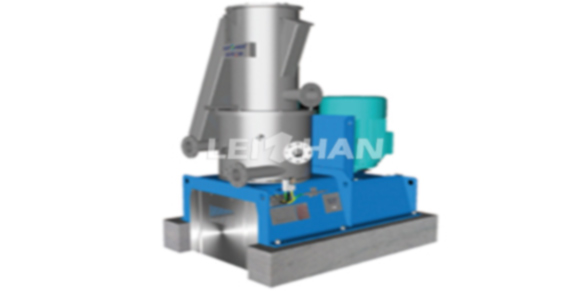

TD Series Tailing Pulp Pressure Screen of Coarse Screen

TD Series Tailing Pulp Pressure Screen of Coarse Screen

TD Series Tailing Pulp Pressure Screen of Coarse Screen

TD Series Tailing Pulp Pressure Screen of Coarse Screen is mainly used for the deflaking of the tailing pulp and the separation of light impurities at the end of the waste paper pulp screening system.

Features

  • 1. Continuous operation, large capacity.
  • 2. Adapted to high concentration, close to 3%.
  • 3. The reject discharging concentration is close to 30%.
  • 4. Working under closed condition, the environment is clean.
  • 5. The fiber loss rate is low.

Technical Data

Type TD1 TD2
Production Capacity(t/d) 60-80 80-100
Concentration of Input Pulp (%) ＜3
Concentration of Reject (%) ≈30
Max. Working Pressure(Mpa) 0.15
Motor Power(kw) 75 90
